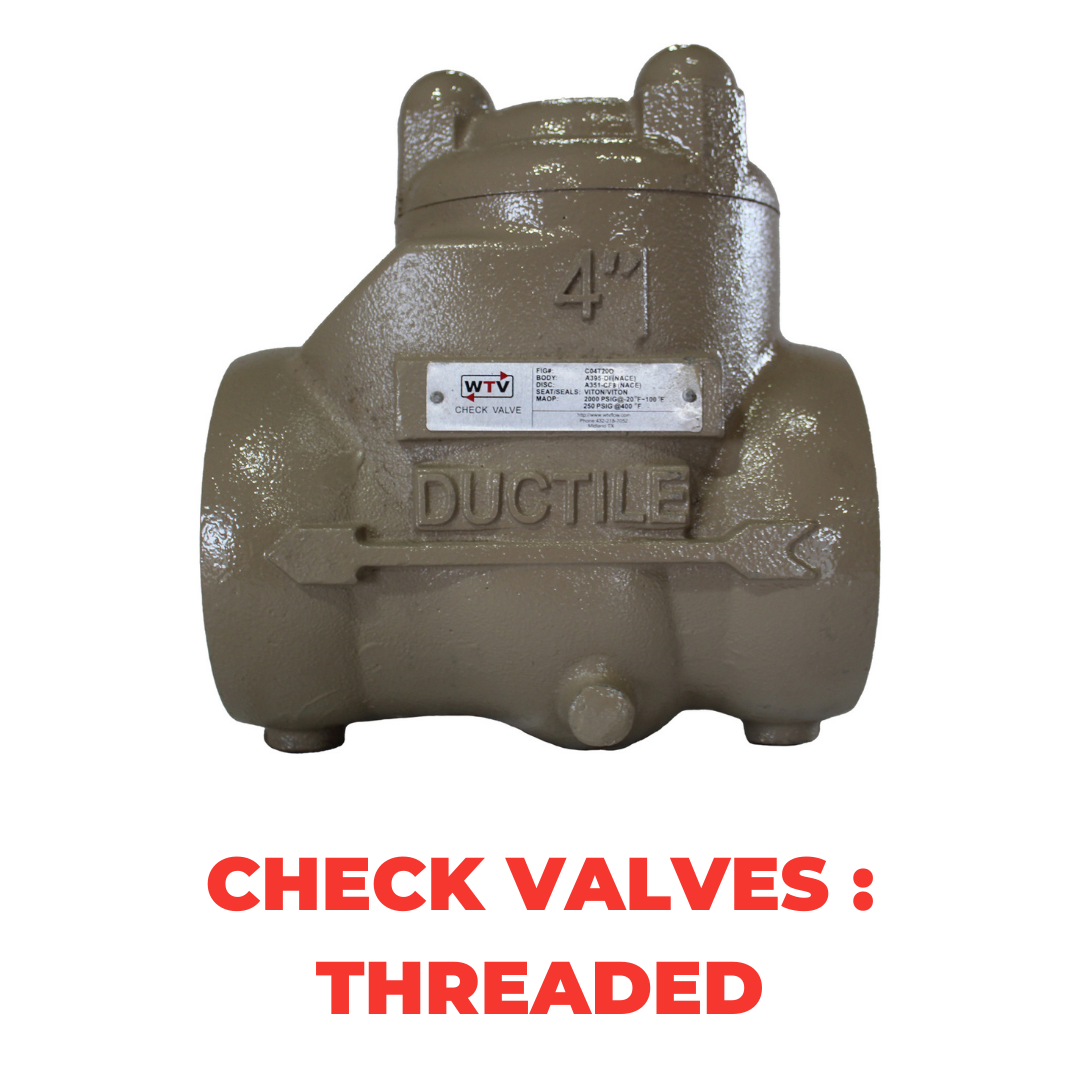

Check Valves : Threaded
WTV threaded swing check valves provide efficient flow management and backflow prevention in various applications, including oil and liquid gas pipelines. Constructed to safeguard upstream systems, these valves are available in numerous sizes and pressure ratings, ensuring compatibility with your project needs. Like all WTV products, our threaded check valves adhere to API, ASME, and ANSI standards for quality and safety.
WTV threaded swing check valves provide efficient flow management and backflow prevention in various applications, including oil and liquid gas pipelines. Constructed to safeguard upstream systems, these valves are available in numerous sizes and pressure ratings, ensuring compatibility with your project needs. Like all WTV products, our threaded check valves adhere to API, ASME, and ANSI standards for quality and safety.
WTV threaded swing check valves provide efficient flow management and backflow prevention in various applications, including oil and liquid gas pipelines. Constructed to safeguard upstream systems, these valves are available in numerous sizes and pressure ratings, ensuring compatibility with your project needs. Like all WTV products, our threaded check valves adhere to API, ASME, and ANSI standards for quality and safety.
PRODUCT NUMBER: DESCRIPTION: WEIGHT
ASC01T20DPC Check Valves : Threaded WTV Check Valve, 1" 2000# Threaded, DI Body, CF8 Disc, Viton Seal, Full Opening W/ Corvel Internal Coating 7lbs
ASC02T20DPC Check Valves : Threaded WTV Check Valve, 2" 2000# Threaded, DI Body, CF8 Disc, Viton Seal, Full Opening W/ Corvel Internal Coating 12.46lbs
ASC03T20DPC Check Valves : Threaded WTV Check Valve, 3" 2000# Threaded, DI Body, CF8 Disc, Viton Seal, Full Opening W/ Internal Corvel Coating 25lbs
ASC03T36DPC Check Valves : Threaded WTV Check Valve, 3" 3000# Threaded, A216 WCB Body, CF8 Disc, Viton Seal, Full Opening W/ Internal Corvel Coating
ASC04T10DPC Check Valves : Threaded WTV Check Valve, 4" 1000# Threaded, DI Body, CF8 Disc, Viton Seal, Full Opening W/ Internal Corvel Coating 39lbs
C01T03D Check Valves : Threaded WTV Check Valve, 1" 300# Threaded, DI Body, CF8 Disc, Viton Seal, Full Opening 6.17lbs
C01T06D Check Valves : Threaded WTV Check Valve, 1" 600# Threaded, DI Body, CF8 Disc, Viton Seal, Full Opening 6.17lbs
C01T10D Check Valves : Threaded WTV Check Valve, 1" 1000# Threaded, DI Body, CF8 Disc, Viton Seal, Full Opening 6.17lbs
C01T15D Check Valves : Threaded WTV Check Valve, 1" 1500# Threaded, DI Body, CF8 Disc, Viton Seal, Full Opening 6.17lbs
C01T20D Check Valves : Threaded WTV Check Valve, 1" 2000# Threaded, DI Body, CF8 Disc, Viton Seal, Full Opening 6.23lbs
C01T50D Check Valves : Threaded WTV Check Valve, 1" 5000# Threaded, A216 WCB Body, CF8 Disc, Viton Seal, Full Opening 5.73lbs
C02T03D Check Valves : Threaded WTV Check Valve, 2" 300# Threaded, DI Body, CF8 Disc, Viton Seal, Full Opening 12.46lbs
C02T06D Check Valves : Threaded WTV Check Valve, 2" 600# Threaded, DI Body, CF8 Disc, Viton Seal, Full Opening 12.46lbs
C02T10D Check Valves : Threaded WTV Check Valve, 2" 1000# Threaded, DI Body, CF8 Disc, Viton Seal, Full Opening 12.46lbs
C02T15D Check Valves : Threaded WTV Check Valve, 2" 1500# Threaded, DI Body, CF8 Disc, Viton Seal, Full Opening 12.46lbs
C02T20D Check Valves : Threaded WTV Check Valve, 2" 2000# Threaded, DI Body, CF8 Disc, Viton Seal, Full Opening 12.57lbs
C02T30D Check Valves : Threaded WTV Check Valve, 2" 3600# Threaded, A216 WCB Body, CF8 Disc, Viton Seal, Full Opening 16.2lbs
C02T50D Check Valves : Threaded WTV Check Valve, 2" 5000# Threaded, A216 WCB Body, CF8 Disc, Viton Seal, Full Opening 12.9lbs
C03T20D Check Valves : Threaded WTV Check Valve, 3" 2000# Threaded, DI Body, CF8 Disc, Viton Seal, Full Opening 24.25lbs
C03T36D Check Valves : Threaded WTV Check Valve, 3" 3000# Threaded, A216 WCB Body, CF8 Disc, Viton Seal, Full Opening 58lbs
C03T50D Check Valves : Threaded WTV Check Valve, 3" 5000# Threaded, A216 WCB Body, CF8 Disc, Viton Seal, Full Opening 0lbs
C04T10D Check Valves : Threaded WTV Check Valve, 4" 1000# Threaded, DI Body, CF8 Disc, Viton Seal, Full Opening 37.36lbs
C04T20D Check Valves : Threaded WTV Check Valve, 4" 2000# Threaded, DI Body, CF8 Disc, Viton Seal, Full Opening 57.26lbs
